CEMENT MIXER / CONCRETE MIXER SMT-5CM01

3 POINT TRACTOR HITCH CEMENT MIXER/CONCRETE MIXER
MODEL: SMT-5CM01
shared:

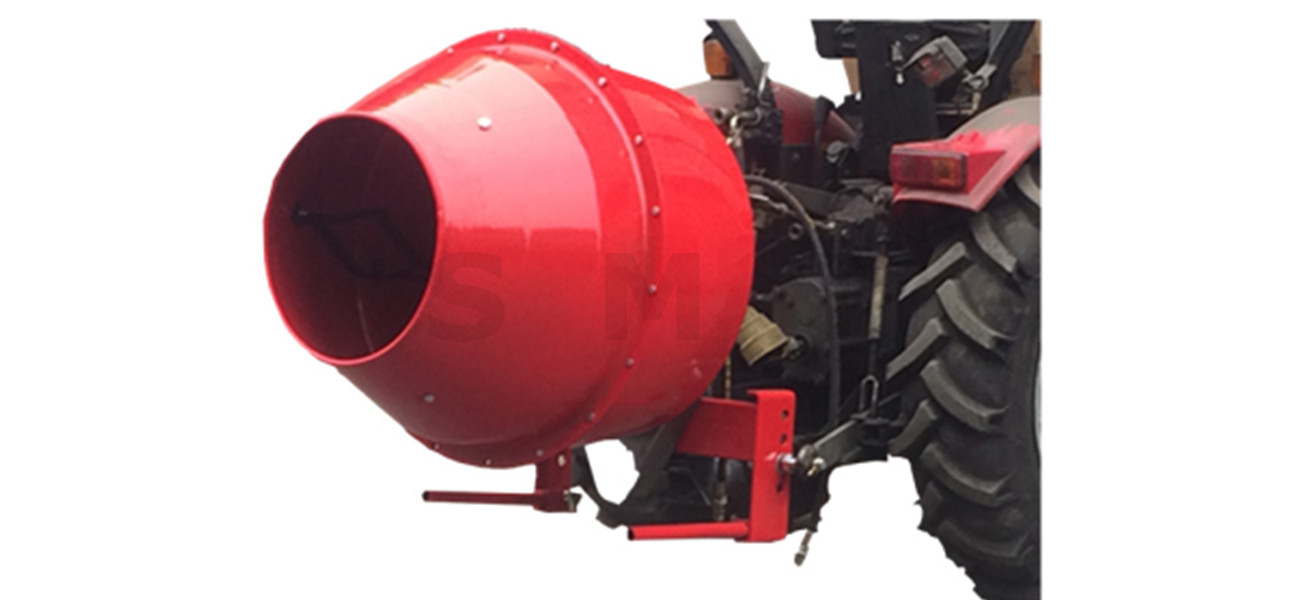

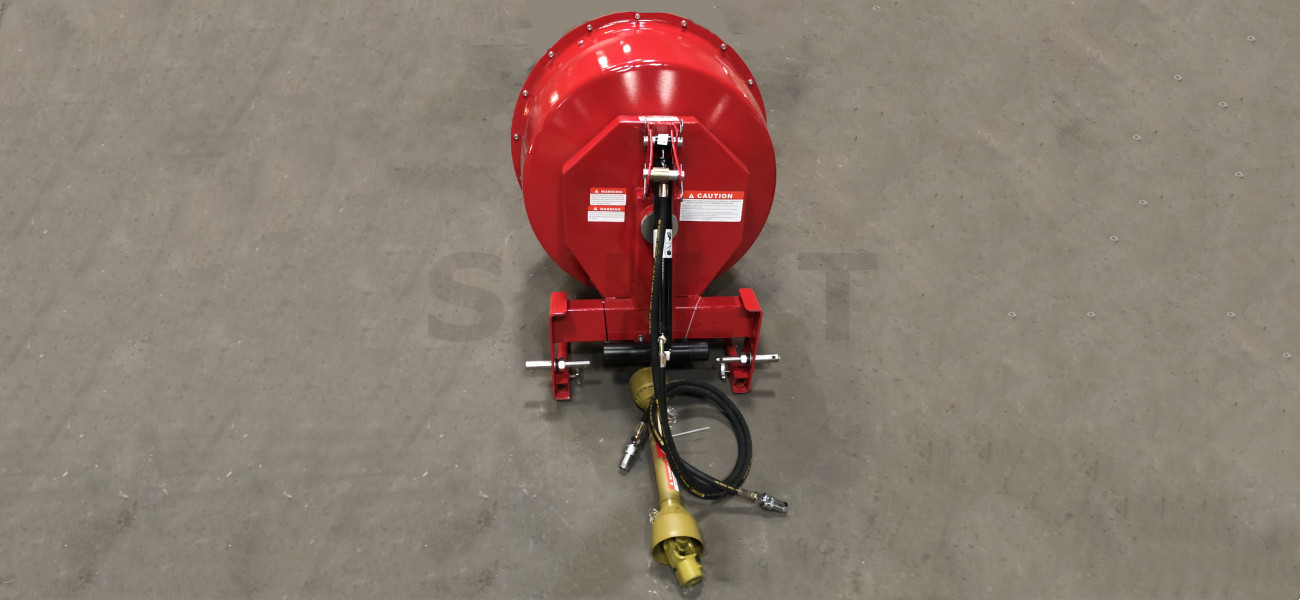

Heavy duty, tractor mounted concrete mixer. Suitable for CAT 1 three-point linkage tractors.

Mix cement, concrete and sand with ease.

Quickly attached to the 3 point linkage of your tractor these are ideal for mixing concrete, cement, slurry and even mixing animal feed.

A top mounted hydraulic cylinder allows for easy discharge of cement.

Internal paddles give clean mixing and efficient emptying of contents.

Easy to service, chain drive. Featuring a fully welded steel drum of 11-gauge steel, this durable unit will get the job done time after time. Runs on any category-1 tractors with 20+ HP. Accepts standard 540 rpm PTO output.

Model No.

5CM01

Hitch

3 Point Linkage

Tractor Power Required

20 HP +

PTO Speed

540 RPM

Cyliner

single acting cylinder

Hopper

No welded

Drive Ratio

8.77:1

Max. Drum Speed

60 RPM

Drum

11-Gauge Steel Drum

Discharge Assist

Yes, Hydraulic

Drive System

Chain Drive

Drum Capacity

5 ft3 (0.14 m3)

Drum Opening

450mm

Mixing Paddles

3
