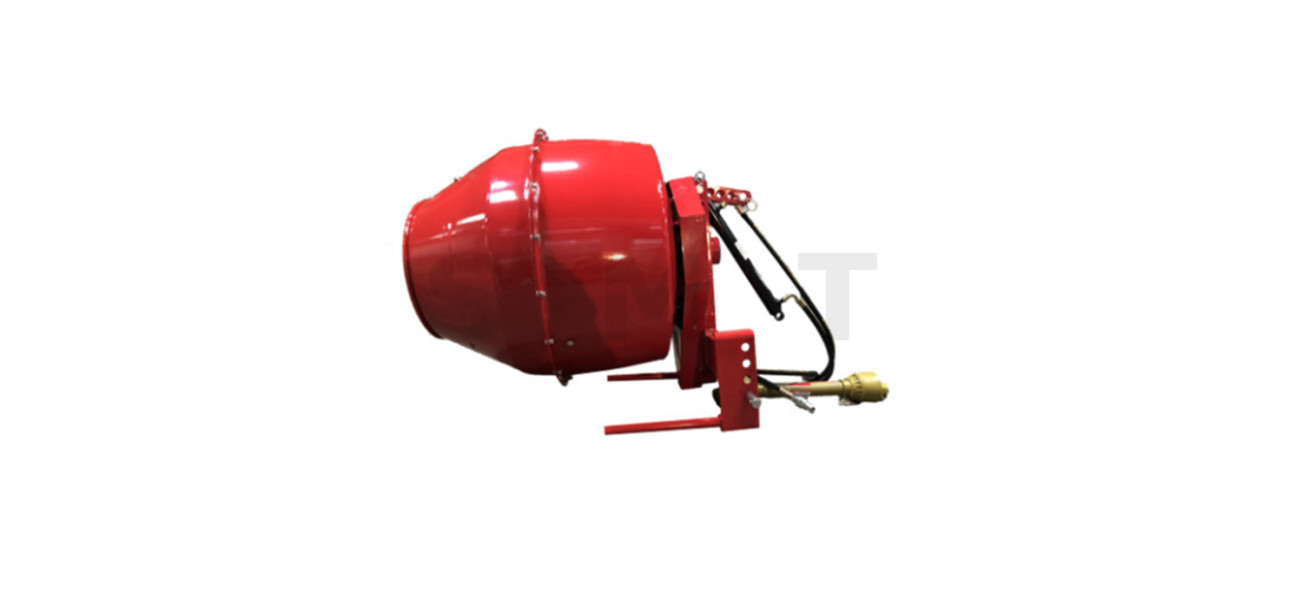

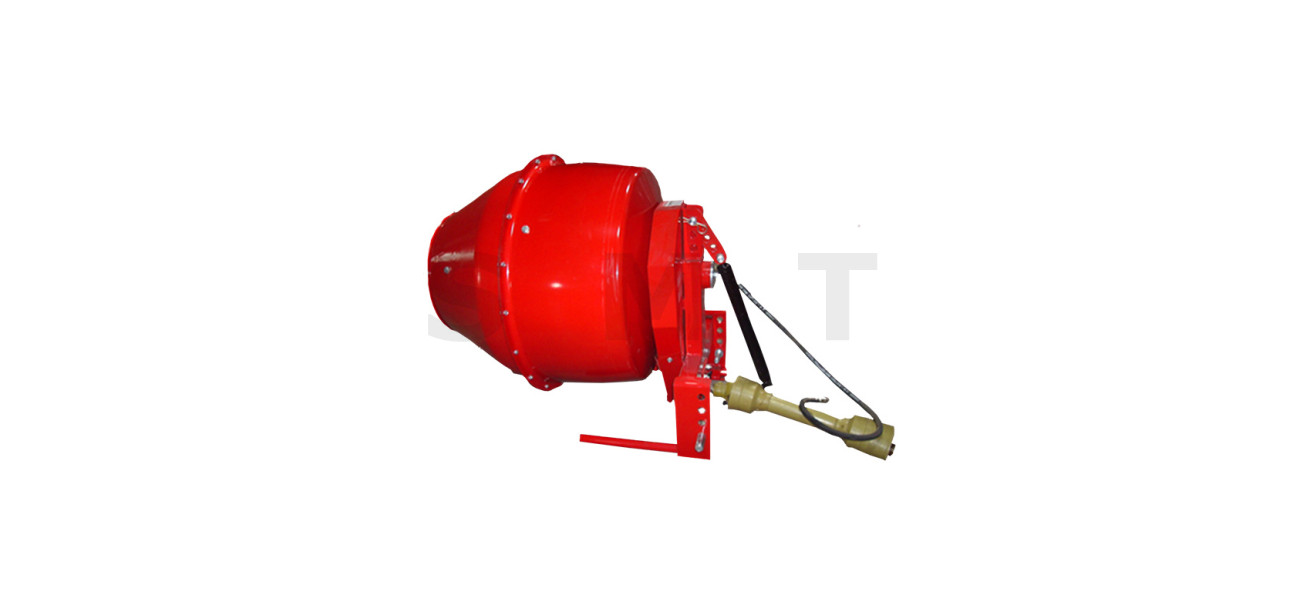

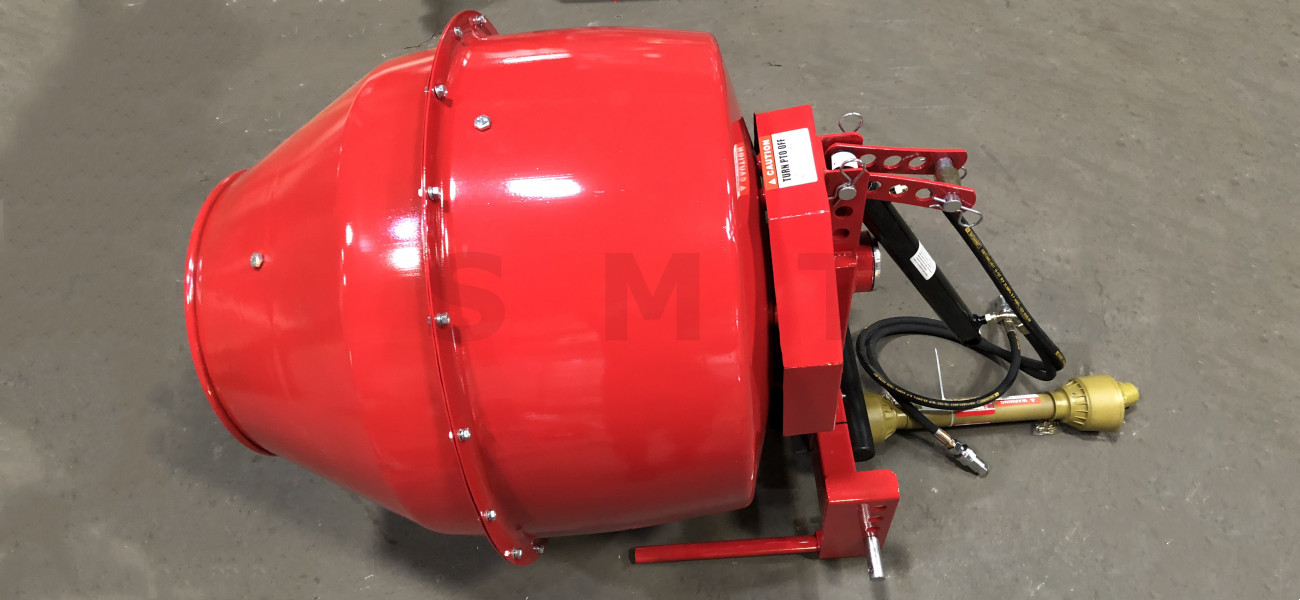

Heavy duty, tractor mounted concrete mixer. Suitable for CAT 1 three-point linkage tractors.
Mix cement, concrete and sand with ease.
Quickly attached to the 3 point linkage of your tractor these are ideal for mixing concrete, cement, slurry and even mixing animal feed.
A top mounted hydraulic cylinder allows for easy discharge of cement.
Internal paddles give clean mixing and efficient emptying of contents.
Easy to service, chain drive. Featuring a fully welded steel drum of 11-gauge steel, this durable unit will get the job done time after time.Runs on any category-1 tractors with 20+ HP. Accepts standard 540 rpm PTO output.
Model No. | 5CM02 |
Hitch | 3 Point Linkage |
Tractor Power Required | 20 HP + |
PTO Speed | 540 RPM |
Cyliner | double acting cylinder |
Hopper | No welded |
Drive Ratio | 8.77:1 |
Max. Drum Speed | 60 RPM |

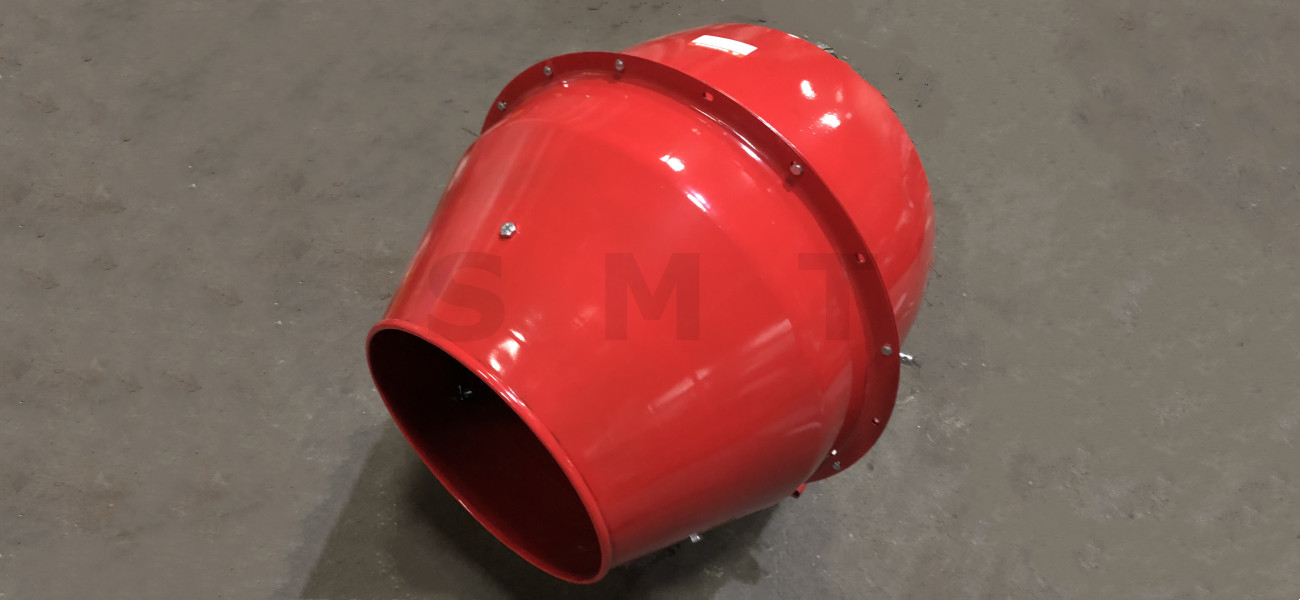

Drum | 11-Gauge Steel Drum |
Discharge Assist | Yes, Hydraulic |
Drive System | Chain Drive |
Drum Capacity | 5 ft3 (0.14 m3) |
Drum Opening | 450mm |
Mixing Paddles | 3 |
