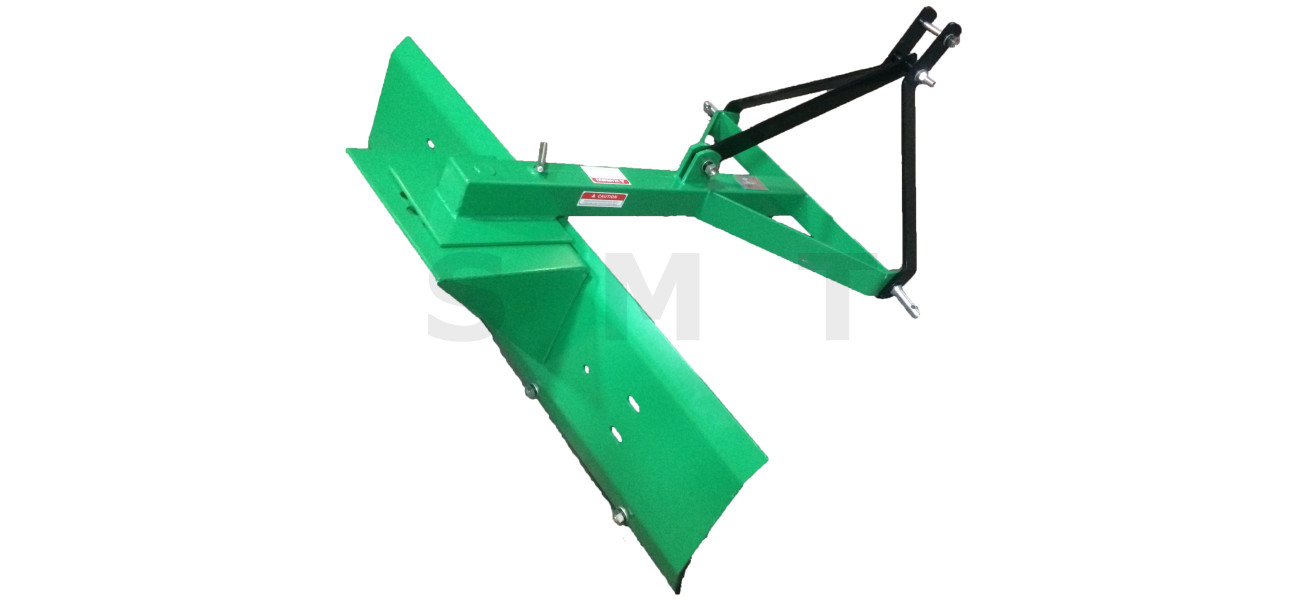

GRADER BLADE SMT-GB
GRADER BLADE SMT-GB
MODEL: SMT-4GB
MODEL: SMT-5GB
MODEL: SMT-6GB
Use this grader blade to help move dirt, snow and more. The grader blade moldboard has adjustable reverse and forward positions. The blade can be rotated 360 ° on a king pin and can be offset 6" from each side of the center. It has a replaceable and reversible cutting edge. The cutting angle locks into position by a heavy duty 3/4" pin. It can side shift and tilt by loosening or removing 5 bolts.
Positions, can be rotated 360 degrees on a 3" king pin.
Cutting angle locks into position by a heavy duty 3/4“ pin.
Adjustable moldboard.
Can be offset 6" from each side.
Replaceable high-carbon steel cutting edge.
Powder coated or galvanized optional.
Rear wheels are optional.
Item# | 4GB |
Working width | 1200 |
No. Of Cutter Edge | 1 |
Power required | 15-45 |
Hitch Linkage | Cat 1 |
Rotation Allows Angular | 360° |
Wheel Kits | Optional |
Item# | 5GB |
Working width | 1500 |
No. Of Tines | 1 |
Power required | 15-45 |
Hitch Linkage | Cat 1 |
Rotation Allows Angular | 360° |
Wheel Kits | Optional |
Item# | 6GB |
Working width | 1800 |
No. Of Cutter Edge | 1 |
Power required | 15-45 |
Hitch Linkage | Cat 1 |
Rotation Allows Angular | 360° |
Wheel Kits | Optional |
Item# | 7GB |
Working width | 2100 |
No. Of Cutter Edge | 1 |
Power required | 15-45 |
Hitch Linkage | Cat 1 |
Rotation Allows Angular | 360° |
Wheel Kits | Optional |
Item# | 8GB |
Working width | 2400 |
No. Of Cutter Edge | 1 |
Power required | 15-45 |
Hitch Linkage | Cat 1 |
Rotation Allows Angular | 360° |
Wheel Kits | Optional |
